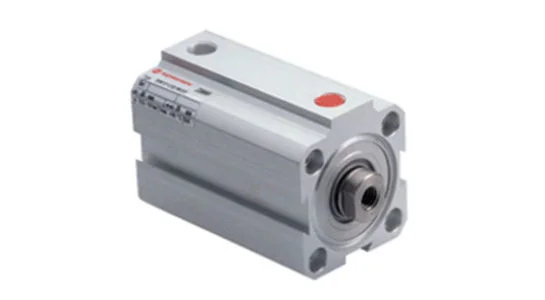

RM/91000/M

Compact Cylinder.

  • Single Acting ø20 to 63mm
  • Single acting, non cushioned, magnetic piston sprung in
  • Low friction, long life seals

This is our standard range of this product, however there are many variants so please contact our sales team to discuss your requirements.

IMI Norgren RM/91000/M

Part NumberBore mmStroke mmPort Size
RM/91020/M/102010M5
RM/91025/M/102510M5
RM/91032/M/103210G1/8
RM/91032/M/253225G1/8
RM/91040/M/104010G1/8
RM/91040/M/254025G1/8
RM/91050/M/255025G1/8
RM/91063/M/256325G1/8

IMI Norgren Accessories RM/91000/M

Model NumbersBanjo flow controlStraight FittingElbow Fitting
RM/91020/MC0L510405C02250405C02470405
RM/91025/MC0L510405C02250405C02470405
RM/91032/MC0L510618C02250618C02470618
RM/91040/MC0L510618C02250618C02470618
RM/91050/MC0L510618C02250618C02470618
RM91063/MC0L510618C02250618C02470618

Reed Switch (with integral 5m cable) M/50/LSU/5V £23.60
